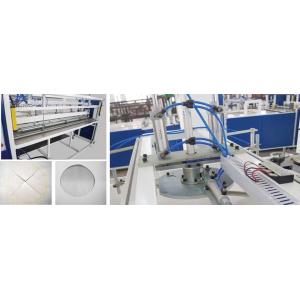

FIBC Big Bag Full-IAutomatic Cutting Making Machine
Description
FIBC Big Bag Full-IAutomatic Cutting Making Machine is applied to the different jumbo bag fabric cutting like:Jumbo bag lay flat/double flat fabric,Jumbo bag single—layer fabric,Jumbo bag bottom cover,top cover,top mouth fabric.
Features
Have the lift Roll of fabric by Compressed air function roll diameter 800mm(Max),roll weight lOOOKg(Max)
Have the Edge positioning control function Distance is :300mm
Have rub cloth opening function
Have cross/hole cutting Size range(diameter):250-550mm
Have four corner point marking function (dotted size 600-1200mm)
Have the hot cutting function,have the safety raster function in cutting location
Have the acupuncture function and supports 4 pieces of Segmented management.
Specification
| 1 | Fabric width (mm) | 2200 (Max) |
| 2 | Cutting length(mm) | 300-6000(Max) |
| 3 | Cutting precision(mm) | ±2 |
| 4 | Production ability(Pcs/min) | 12-18(1000mm) |
| 5 | Temperature control (°C) | 300(MAX) |
| 6 | Total power(kw) | 11 |
| 7 | Power connection (v) | 380V 50Hz 3- phase with zero- and earth-wire |
| 8 | Compressed air supply | mains pressure approx. 7bar working pressure approx. 6bar air humidity approx. 2.0 m7h |
| 9 | Machine size(L*W*H)mm | 5500*2900*1500 |
|
|
